有向グラフの幅優先探索と深さ優先探索【グラフ理論】

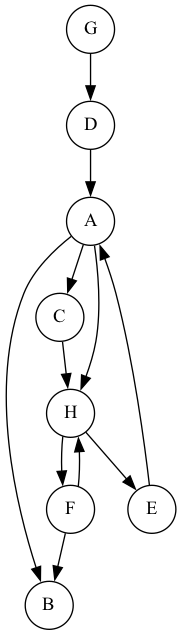

import numpy as np
from graphviz import Digraph

G = Digraph(format="png",)
G.attr("node", shape="circle")
G.edge("A","B")
G.edge("A","C")
G.edge("A","H")
G.edge("C","H")
G.edge("H","F")
G.edge("H","E")
G.edge("E","A")
G.edge("F","B")
G.edge("F","H")
G.edge("G","D")
G.edge("D","A")
G = G.unflatten(stagger=2)
G.render("L.png")

1  [D]
2  [D,A]
3  [D,A,B]
4  [D,A]
5  [D,A,C]
6  [D,A,C,H]
7  [D,A,C,H,E]
8  [D,A,C,H]
9  [D,A,C,H,F]
10 [D,A,C,H]
11 [D,A,C]
12 [D,A]
13 [D]
14 []
15 [G]
16 []
>>>
Discovery time, Finish time
D 1,14
A 2,13
B 3,14
C 5,12
H 6,11
E 7,8
F 9,10
G 15,16

class Node:
    def __init__(self,name) -> None:
        self.next_nodes:list[Node] = []
        self.name:str = name
        self.color: str = ""
        self.prev:Node | None = None
        self.finish_time:int = 0
        self.discover_time:int = 0
        pass

    def set_next(self,data) -> None:
        self.next_nodes.append(data)

    def __repr__(self) -> str:
        return f"{self.name}"

    def set_color(self, color:str) -> None:
        self.color = color

    def get_color(self) -> str:
        return self.color

    def set_prev(self,prev) -> None:
        self.prev = prev

    def get_prev(self):
        return self.prev

    def set_finishtime(self,finish_time:int) -> None:
        self.finish_time = finish_time

    def set_discovertime(self,discover_time:int) -> None:
        self.discover_time = discover_time


nodes = [Node(chr(i).upper()) for i in range(97,105)]
#A 0 B 1 C 2 D 3 E 4 F 5 G 6 H 7
nodes[6].set_next(nodes[3])
nodes[3].set_next(nodes[0])
nodes[0].set_next(nodes[1])
nodes[0].set_next(nodes[2])
nodes[0].set_next(nodes[7])
nodes[2].set_next(nodes[7])
nodes[7].set_next(nodes[4])
nodes[7].set_next(nodes[5])
nodes[4].set_next(nodes[0])
nodes[5].set_next(nodes[1])
nodes[5].set_next(nodes[7])


stack = [nodes[3]]
currNode:Node = stack[-1]
currNode.set_prev(None)
currNode.set_color("g")
currNode.set_discovertime(1)
i = 1

while len(stack) >0:
    adj:list[Node]|list[None] = [i for i in currNode.next_nodes if i.get_color() != "g"]
    print(i,f"{stack}")
    if len(adj) == 0:
        currNode = stack.pop(-1)
        currNode.set_color("g")
        currNode.set_finishtime(i+1)
        if len(stack) == 0:
            break
        currNode = stack[-1]
    else:
        currNode = adj[0]
        currNode.set_color("g")
        stack.append(currNode)
        currNode.set_discovertime(i+1)
    i+=1

for i in nodes:
    print(i.name,i.discover_time, i.finish_time)
>>>
1  [D]
2  [D, A]
3  [D, A, B]
4  [D, A]
5  [D, A, C]
6  [D, A, C, H]
7  [D, A, C, H, E]
8  [D, A, C, H]
9  [D, A, C, H, F]
10 [D, A, C, H]
11 [D, A, C]
12 [D, A]
13 [D]
#######
A 2 13
B 3 4
C 5 12
D 1 14
E 7 8
F 9 10
G 0 0
H 6 11

1 [D]
2 [B,C,H]
3 [C,H]
4 [H]
5 [E,F]
6 [F]
7 []

Final depth
A 1
B 2
C 2
D 0
E 3
F 3
G -

currNode:Node = nodes[3]
currNode.set_color("g")
currNode.set_discovertime(0)

queue = [i for i in currNode.next_nodes]
for i in queue:
    i.set_color("g")
    i.set_discovertime(1)
k = 2
while len(queue) > 0:
    currNode = queue.pop(0)
    print(currNode.next_nodes)
    for i in currNode.next_nodes:
        if i.discover_time > k:
            i.set_discovertime(k)
    if currNode.get_color() != "g":
        currNode.set_color("g")
    for i in [i for i in currNode.next_nodes if i.get_color() != "g" ]:
        i.set_color("g")
        queue += [j for j in i.next_nodes if j.get_color() != "g"]
    k+=1
for i in nodes:
    print(i.name,i.discover_time)
>>>
[B, C, H]
[E, F]
[A]
[B, H]
A 1
B 2
C 2
D 0
E 3
F 3
G inf
H 2
